Main Causes of Drill Rod Fatigue Fracture and How to Prevent Them
Main Causes of Drill Rod Fatigue Fracture and How to Prevent Them

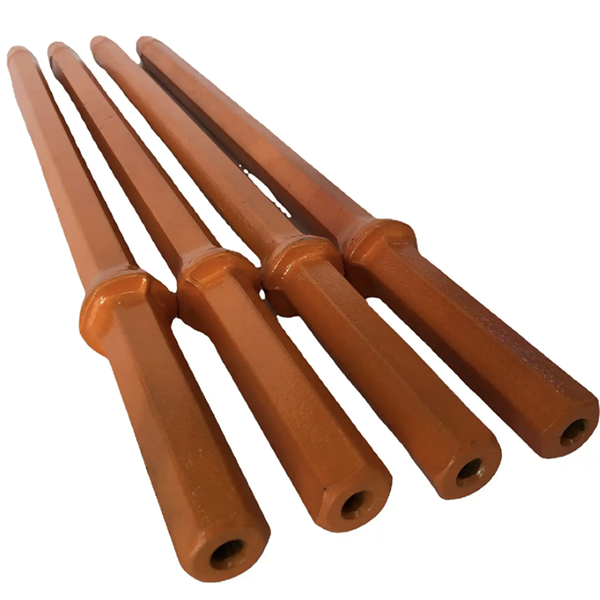

Drill rods operate under repeated impact, rotation, bending, and flushing conditions. In mining, tunneling, quarrying, and construction drilling, these high-frequency alternating loads can gradually create cracks that grow until the rod fails.
Fatigue fracture is one of the most common failure modes in rock drill rods. Understanding its causes helps operators, manufacturers, and maintenance teams reduce tool damage, avoid unplanned downtime, and improve drilling safety.
Fatigue Fracture: The Most Common Failure Mode
Fatigue cracks often begin at microscopic defects or areas of stress concentration. Once a small crack forms, repeated drilling loads can cause it to expand over time until the drill rod breaks.
Material and manufacturing defects are important contributors. Poor bonding between an internal tube and the rod body can create weak zones. Surface pits or wear inside the flushing hole can also become stress concentrators and initiate fatigue cracking.
External surface damage is another major risk. Scratches, impact marks, and handling damage can become crack initiation points. On threaded drill rods, loose assembly can cause thread impact and compression damage, reducing fatigue life.
Non-uniform metallurgical structures may also weaken the steel. Large areas of abnormal or mixed microstructure can reduce the material’s resistance to repeated stress.
Brittle Fracture Risks
Brittle fracture differs from fatigue failure because it can occur with little visible plastic deformation. It is often linked to poor material toughness or abnormal microstructure.
For example, silicon-rich ferrite blocks or other uneven structures in the steel can reduce toughness and increase the likelihood of sudden fracture during use. Reliable raw-material control and metallurgical inspection are therefore essential for drill rod production.
Problems Caused by Manufacturing and Use
Poor forging control can cause early failure. If the heating temperature is too high, overheating may occur in forged areas such as the rod shoulder. Stress concentration in heat-affected zones can also lead to premature cracking.
Thread assembly is another critical point. If threaded connections are not tightened correctly, repeated movement between the threads can create impact marks and crushing damage. These defects can later become fatigue-crack origins.
Abnormally high thread temperatures can produce burn marks or melting pits. This damage reduces the surface quality of the connection and increases the risk of thread-related failure.
Heat Treatment Defects
Heat treatment strongly affects drill rod performance. Improper carburizing can create undesirable structures, such as network carbides, that reduce the balance between hardness and toughness.
Residual stress is another concern. Heat treatment changes the steel microstructure, but it may also create internal stress concentrations. If these stresses are not controlled, the rod can become more vulnerable to early damage.
A well-designed heat-treatment process should provide a hard, wear-resistant surface while retaining a tough core capable of handling repeated impact loads.
Quality Control from Raw Material to Finished Rod
Reducing drill rod failures requires quality control throughout the manufacturing process. This begins with steel cleanliness, chemical composition, and low-magnification structure inspection.
Manufacturers with integrated processes from steelmaking and rolling through drill rod production can monitor material quality more closely. Hollow-steel production methods such as drilling combined with core rolling can help improve dimensional accuracy and internal-hole quality, reducing stress concentration inside the rod.
Final inspection is equally important. Quality departments, chemical-analysis teams, and finished-product testing should verify that the drill rod meets required performance standards before delivery.
Conclusion
Drill rod fatigue fracture is rarely caused by one factor alone. Material defects, surface damage, poor thread assembly, forging problems, heat-treatment defects, and excessive operating stress can all contribute.
By selecting well-manufactured drill rods, maintaining thread connections, inspecting rods regularly, and using proper drilling parameters, operators can reduce failure risk and extend the service life of mining drilling tools.
