What Is an Automatic Drill Bit Changing System for Rock Drilling Jumbos?
An automatic drill bit changing system enables the full cycle of drill bit wear assessment, removal, storage, retrieval, and installation. It is used in underground mine development, long-hole drilling, and surface drilling to replace worn bits and install new ones with minimal manual intervention. This supports remote operation and automated mining workflows.
Core Components and Operation

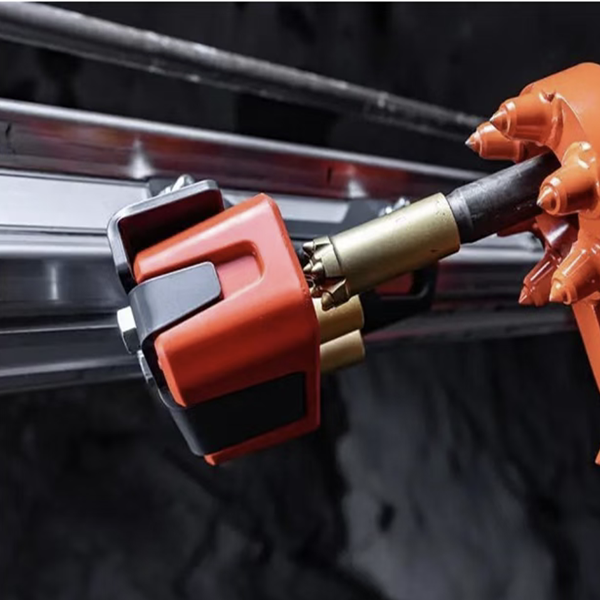

The system typically includes a rotating drill bit magazine, a mechanical gripping mechanism, a hydraulic tightening and alignment unit, and an intelligent monitoring and control system.
The rotating magazine stores both new and used drill bits and can include spare positions for continuous drilling. Gripping mechanisms may use pneumatic expanding chucks or mechanical external grippers to accommodate different bit designs.
The hydraulic unit tightens, removes, and aligns the drill rod and drill bit. The intelligent control system evaluates bit wear using drilling torque, feed speed, and equipment vibration data, then automatically initiates a bit-change command.
Common Configurations
Sandvik automatic bit-changing systems commonly carry six to nine drill bits, support hole diameters from 45 to 115 mm, and complete a change in approximately 30 to 60 seconds. Their intelligent monitoring functions can support remote control, coordinated multi-rig operation, and cloud-based bit lifecycle management.
Epiroc systems commonly use four fixed storage positions, support hole diameters from 51 to 127 mm, and complete a change in approximately 45 to 70 seconds. They use mechanical gripping with an anti-seizure removal structure.
Operational Benefits
Automatic bit changing reduces personnel exposure to rockfall and rockburst hazards near excavation faces. It also removes manual disassembly, installation, and alignment time, extending continuous drilling time and increasing drilling output per shift.
Wear-monitoring functions help select a more appropriate replacement point, avoiding premature bit replacement and preventing excessive wear from damaging drill rods and related equipment. This lowers consumable and maintenance costs.
As mining automation advances, automatic drill bit changing systems will continue to reduce dependence on manual intervention while improving productivity, safety, and cost control.
