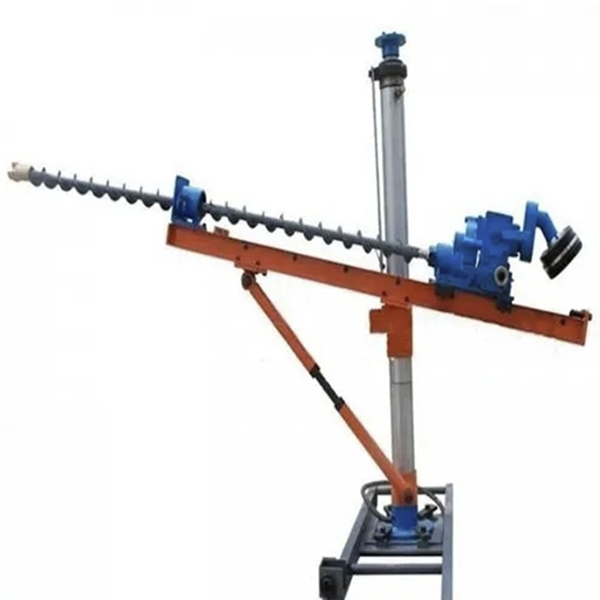

Pneumatic Column-Mounted Drill Rig: A Safe and Efficient Tool for Underground Drilling
In underground mining operations, drilling is a critical part of ensuring safe and efficient production. Whether for water detection, gas drainage, geological exploration, or coal seam water injection, reliable drilling equipment is essential. Among the various options available, the pneumatic column-mounted drill rig has become a key machine specifically designed for underground environments.
Thanks to its advantages of spark-free pneumatic power, easy operation, and strong adaptability, this type of drill rig has become a mainstay in mine drilling applications, playing an important role in improving both underground safety and work efficiency.
Working Principle: Pneumatic Power and Column Support
The core working principle of a pneumatic column-mounted drill rig is based on two key systems: pneumatic drive and column support. This design makes it particularly suitable for the special conditions found underground.
The rig uses compressed air—commonly available in mines—as its only power source. Because it does not require electricity, it eliminates underground electrical hazards such as leakage, sparks, and ignition risks at the source. This makes it especially suitable for hazardous working conditions with high gas concentration and heavy dust.
Compressed air is delivered to the machine through a dedicated air hose and enters the pneumatic motor inside the rig. The motor converts air pressure into mechanical energy, driving the drill rod and drill bit to rotate at high speed. The cutting action of the bit then breaks the coal seam or rock formation, completing the drilling process.
Why the Column Support System Matters
The “column” in a pneumatic column-mounted drill rig is the key to stable operation.
Before drilling begins, the rig’s adjustable support column is positioned tightly between the roof and floor of the underground roadway. By adjusting the support force, the machine body is securely fixed in place, forming a stable support structure.
This design offers several major benefits:
supports the weight of the drill rig,
absorbs reverse torque generated during drilling,
reduces vibration and impact,
prevents machine shifting or shaking,
improves hole verticality and drilling accuracy,
reduces operator labor intensity.
With proper support, the drill rig can maintain more stable performance even in demanding underground conditions.
Auxiliary Systems for Easier Operation
In addition to its power and support systems, the drill rig is equipped with auxiliary components such as a feed mechanism and a control valve assembly, making operation more convenient and efficient.
The feed mechanism allows flexible control of the drill rod’s forward and backward movement. It also enables the operator to adjust the feed speed according to the hardness of the rock or coal seam, ensuring better adaptability to different geological conditions.
The valve group controls the on/off function and flow rate of compressed air, allowing easy operation of:
start-up,
shut-down,
speed adjustment,
drilling control.
Because the control system is relatively simple and user-friendly, even operators without advanced technical skills can learn to use the machine effectively after basic training.
Main Applications in Underground Mining
The pneumatic column-mounted drill rig is widely used in underground mines and is suitable for three major drilling application categories: safety control, production support, and geological exploration.
1. Safety-Related Drilling
This includes water detection holes and gas drainage or gas probing holes.
These holes are used to identify:
underground aquifer locations,
water-bearing zones,
gas accumulation areas,
potential risks of water inrush or gas outburst.
By providing accurate drilling data, these operations help mines detect hazards in advance and strengthen underground safety management.
2. Production Support Drilling
This category includes water injection holes and pressure relief holes.
For example:
coal seam water injection can reduce dust generation during mining,
pressure relief drilling can release stress in surrounding rock formations and improve the underground working environment.
These drilling tasks play an important supporting role in daily mine production.
3. Geological Exploration Drilling
The rig can also be used for geological investigation holes, which help collect underground rock or coal samples.
These samples provide important data for:
geological analysis,
resource evaluation,
mine planning,
drilling layout and extraction design.
As a result, the rig also serves as a practical tool for mine exploration and technical decision-making.
Key Advantages of Pneumatic Column-Mounted Drill Rigs
Compared with other types of drilling equipment, pneumatic column-mounted drill rigs offer several clear advantages:
Safer operation without electricity
No spark risk in gassy underground environments
Compact structure for easy transport and installation
Simple maintenance and lower service complexity
Suitable for narrow underground roadways
Capable of drilling at different angles
Strong adaptability to various underground drilling tasks
Because of these strengths, the pneumatic column-mounted drill rig is widely recognized as a reliable and efficient solution for underground mining operations.
Conclusion
As a dependable tool for underground drilling, the pneumatic column-mounted drill rig combines a simple yet robust structure with safe and efficient performance. Its non-electric drive system, stable column support, and flexible operation make it an indispensable piece of equipment in modern underground mining.
Whether used for gas drainage, water detection, coal seam treatment, or geological exploration, this drill rig provides the safety, efficiency, and adaptability needed to support stable mine production. For many mining companies, it has become one of the most important machines for underground drilling work.
